Introducing

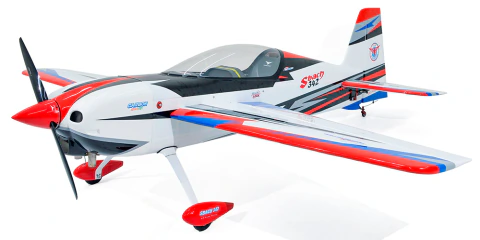

SBACH 342 103" 120cc ARF V2
Technical data
- Wingspan: 2616mm (103 in)
- Length: 2610mm (102.8 in)
- Flying weight: 12800-13000 g
- Wing area: 124 dm2
- Gear type: Carbon fiber for main gear (included)
- Spinner size: Carbon Spinner 115mm (included)
- Gravity CG: 190mm (7.4 in) Back from the leading edge of the wing, at the fuselage
CONTROL SETTINGS:
- Elevator:
Low Rate 8-10 deg. 10-25% expo
3D Rate 45-50 deg. 55-65% expo
- Aileron:
Low Rate 15-20 deg. 40-45% expo
3D Rate 38-40 deg. 60-75% expo
- Rudder:
Low Rate 20 deg 40-50% expo
3D Rate 45-50 deg. 60-80% expo
POWER SYSTEM:
GAS
- Engine 120-125cc Propeller: suit with your engine
- Fuel tank: 1000ml
SERVO: Metal gear hi-torque servos
- 4 Aileron: hi-torque 40-55 kg ( Standard size: 20x40mm )
- 2 Elevator: hi-torque 30-40 kg ( Standard size: 20x40mm )
- 2 Rudder: hi-torque 30-40 kg ( Standard size: 20x40mm )
- 1 Throttle: hi-torque 10-20 kg ( Standard size: 20x40mm ) (Gas Power)
Feature
- Capable of both precise and extreme 3D aerobatics
- Designed for compatibility with both GP-EP flight
- Factory-painted Carbon fiber Spinner (included)
- Factory-painted Carbon fiber Main langding gear and tail gear (included)
- Factory-painted fiberglass cowling and wheel pants (included)
- Factory-painted fiberglass control horn (included)
- All ball linkages and hexagon metal rod are included (included)
- Plug-in wings with Smart Lock system for fast assembly and easy transport (included)
- Removable canopy for easy change lipo battery and set up radio
- Removable horizontal stabilizer
- Constructed from high-quality balsa and plywood, reinforced with Composite material for super strong and light weight
- Genuine polyester covering film ensures excellent color durability
- All high-quality hardware included
